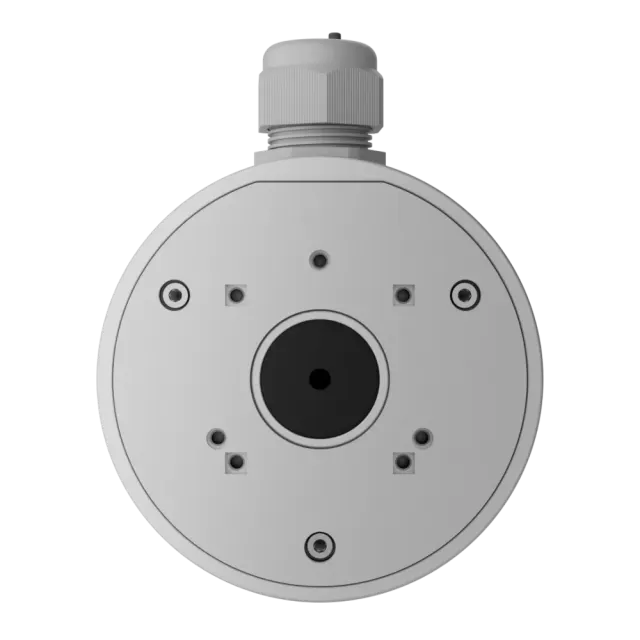

Ajax JunctionBox WH – IP camera mounting box, aluminium 152×117×59 mm
Waterproof aluminium mounting box Ajax JunctionBox WH for Ajax IP camera cable management. Suitable for indoor and outdoor installation on concrete walls, ceilings, or columns.
B2B partners can see their special prices and discounts after signing in.
Description
Ajax JunctionBox WH is a waterproof ADC12 aluminium mounting box designed for professional cable management of Ajax IP cameras. It enables straightforward and reliable installation of cameras on concrete walls, ceilings, or columns, both indoors and outdoors. It is compatible with Ajax TurretCam, BulletCam, and DomeCam Mini cameras, as well as third-party devices. The complete set includes all necessary fixings, saving installers time on site.
Key features
- Material: ADC12 aluminium
- Dimensions: 152 × 117 × 59 mm
- Weight: 468 g
- Waterproof cable gland: PG21 cable gland protects the cable from damage and excessive bending
- Sealing ring: for one or two cables – prevents ingress of water, dust and contaminants
- Grounding terminal: ensures safe earthing of the device
- Mounting wire: holds the lid in place during installation to prevent it from falling
- Drilling template: included installation template for precise hole marking
- Two cable entry options: cable gland can be fitted on the side or at the top of the box
- Conduit support: accepts pipe or corrugated conduit up to Ø 16 mm
- Compatibility: Ajax TurretCam, BulletCam, DomeCam Mini and third-party devices
- Installation: indoor and outdoor use (vertical and horizontal surfaces)
- Colour: white (WH)
Ajax JunctionBox WH is the ideal solution for professional installers seeking a reliable, long-lasting, and aesthetically clean cable management solution for wired security IP cameras.
