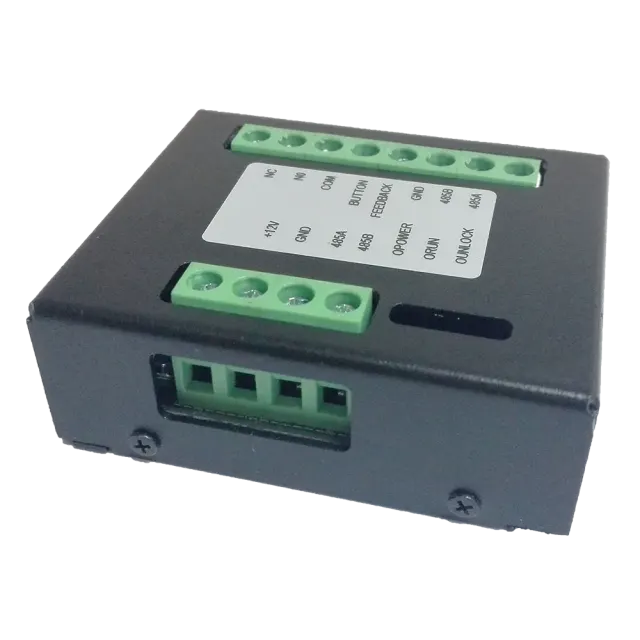

Dahua DEE1010B – Access Control Extension Module, RS-485, NO/NC Lock Output

The Dahua DEE1010B is an access control extension module designed to expand the functionality of Dahua VTO outdoor door stations. Installed inside a standard 86 mm × 86 mm gang box, it communicates with the host device via RS-485 bus to enable second-lock control directly from an indoor monitor or management software (DMSS, DSS Client). It is well suited for security portals (mantrap configurations) or any installation requiring independent control of a secondary entrance.

Key features

• Compatibility: works with Dahua VTO outdoor stations (VTO6210, VTO2111, VTO2000 and other RS-485 models)
• Communication interface: RS-485 bus for reliable communication with the host controller or door station
• Lock outputs: Normally Open (NO) and Normally Closed (NC) relay output – compatible with electronic and magnetic locks
• Inputs: 1× door status sensor, 1× exit button input, 1× alarm input
• Card reading: IC card support via external card reader (up to 5,000 cards); add/delete card functions
• Indicators: 3 LED indicators – power, run status, and door unlock status
• Power supply: DC 12 V ± 10%; consumption: ≤ 0.5 W (standby) / ≤ 1 W (working)
• Operating temperature: −10 °C to +60 °C; relative humidity 10%–90%
• Dimensions (L × W × H): 58 mm × 51 mm × 24.5 mm; weight: 0.56 kg
• Construction: metal housing for long-term durability
• Mounting: fits inside a standard 86 mm × 86 mm power/gang box

The DEE1010B is the ideal solution for integrating access control into existing Dahua video intercom systems without replacing the main door station.
