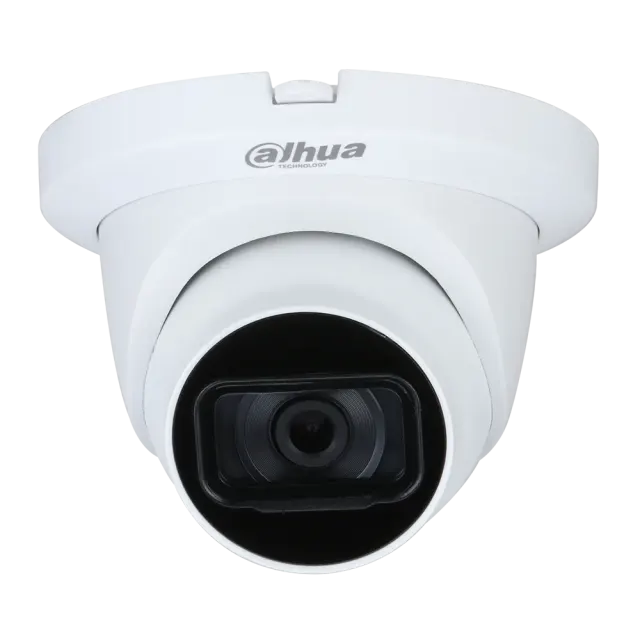

Dahua HAC-HDW2501TMQ-A-0280B-S2 – 5MP Starlight HDCVI Turret Camera, IR 60 m, IP67

The Dahua HAC-HDW2501TMQ-A-0280B-S2 is a professional 5MP Starlight HDCVI turret (eyeball) camera from the Pro Series, designed for demanding outdoor and indoor surveillance applications. Thanks to Starlight technology and its 1/2.7" CMOS sensor, it delivers exceptionally clear colour images even under very low-light conditions, while Smart IR illumination with a range of up to 60 m ensures continuous monitoring in total darkness. The quick-to-install eyeball design significantly reduces installation time.

Key features

• Sensor: 1/2.7" CMOS, Starlight technology for colour imaging in low light
• Resolution: 5MP (2880 × 1620); also supports 4MP, 1080P and 960H
• Frame rate: up to 25 fps @ 5MP (16:9 video output)
• Lens: 2.8 mm fixed, aperture F1.6; field of view 132° × 111° × 58° (diagonal × horizontal × vertical)
• IR illumination: Smart IR, range up to 60 m; automatic LED intensity adjustment prevents overexposure
• Day/Night: auto-switch with ICR filter
• Wide dynamic range: 120 dB true WDR
• Noise reduction: 3D NR (reduces bandwidth and storage consumption)
• Backlight compensation: BLC / HLC / HLC-Pro / WDR
• White balance / gain: auto or manual
• Video outputs: CVI / CVBS / AHD / TVI – switchable
• Built-in microphone: yes (-A suffix in model code)
• Protection rating: IP67
• Power supply: DC 12V ± 30%
• Mounting: Quick-to-install eyeball form factor for fast ceiling, wall or pole installation

The camera complies with European standards (CE) and is compatible with Dahua XVR recorders. For 5MP 16:9 operation, the XVR firmware must be updated to version V4.001.0000001.0.R.200908 or later.
