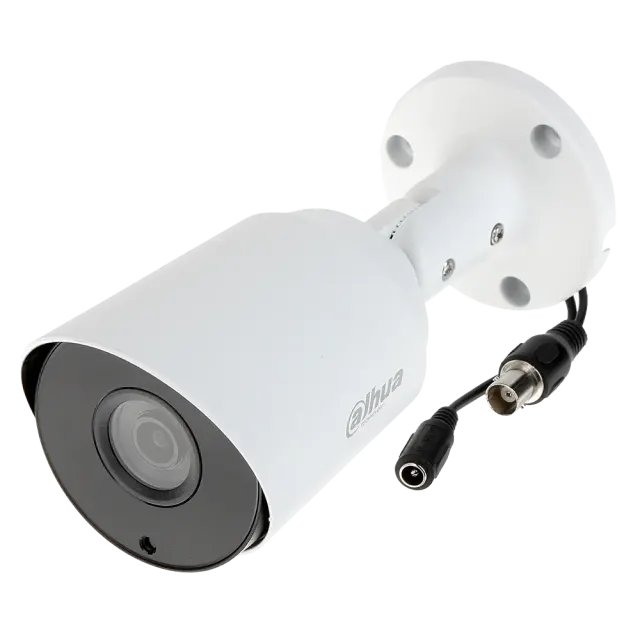

Dahua HAC-HFW1200T-0280B-S4 – HDCVI Bullet Camera 2 MP, 2.8 mm Lens, IR 30 m

The Dahua HAC-HFW1200T-0280B-S4 is a compact outdoor analogue bullet camera from the HDCVI Lite series, designed for professional security systems in small and medium-sized premises. Thanks to HDCVI technology, it transmits full 1080P HD video over existing coaxial cabling at distances of up to 800 m, greatly simplifying upgrades of legacy analogue installations.

Key features

• Sensor: 1/2.7" progressive CMOS
• Resolution: 2 MP – 1920 × 1080 (1080P), up to 30 fps
• Lens: fixed, 2.8 mm focal length, 103° angle of view
• Night vision: Smart IR up to 30 m; min. illumination 0.02 lux (F1.85, 30 IRE); 0 lux with IR on
• IR LED: 1 IR LED, auto/manual control
• Output formats: 4-in-1 – HDCVI / HDTVI / AHD / 960H; switchable via OSD or Dahua controller
• HD/SD output: switchable HD and SD output
• Signal transmission: video, audio*, data and power over a single coaxial cable (HDCVI); 1080P transmission up to 800 m
• Signal-to-noise ratio: more than 65 dB
• Image functions: OSD, AWB, AGC, BLC, HLC, digital WDR, 2D-NR
• Power supply: 12 V DC
• Protection: IP67 (dust and water); aluminium housing
• Mounting: 3-axis adjustment (ceiling, wall, pole)
• Lightning protection: 4 kV

The HAC-HFW1200T-0280B-S4 is an ideal choice for CCTV systems built on existing coaxial infrastructure, or wherever a cost-effective installation with high-quality imaging is required.
