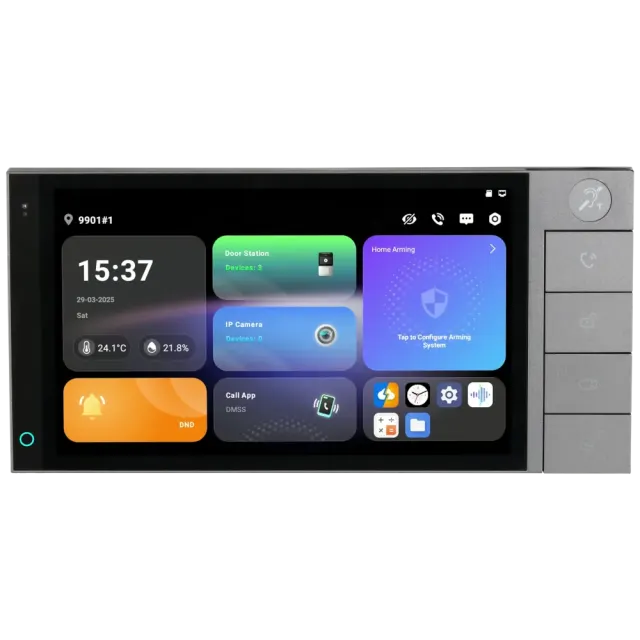

Dahua SCP3022B-IBZ – IP/2-Wire Smart Control Panel, 7" IPS, Android 14

The Dahua SCP3022B-IBZ is a premium indoor smart control panel designed as the central management point for IP and 2-Wire video intercom systems. It combines video intercom, video surveillance, wireless alarm and basic building automation into a single elegant interface – the ideal solution for villas, apartments, multi-dwelling buildings, hotels and offices.

Key features

• Display: 7-inch IPS capacitive multi-touch screen, 1024 × 600 px resolution, viewing angles up to 80° horizontally and vertically
• Operating system: Android 14 with 4 GB RAM and 16 GB ROM; supports installation of third-party APK applications
• Connectivity: IP, IP 2-Wire and Wi-Fi (IEEE 802.11a/b/g/n/ac/ax, 2.4 GHz); 10/100 Mbps Ethernet network port
• Wireless automation: ZigBee, Bluetooth (BR/EDR/BLE) and 868 MHz radio for controlling alarm sensors, lighting, roller blinds and other smart home components
• Alarm I/O: 8 alarm inputs and 1 alarm output; doorbell support (via alarm input port)
• Interfaces: 1× RS-485, 1× USB, 1× power output port (12 V, 200 mA)
• Audio: two-way audio communication; G.711a, G.711u, PCM compression; 1 audio input, 1 audio output; hearing loop compatibility for hearing-aid users
• Storage: microSD card slot up to 512 GB
• Power supply: PoE 48 V DC / 0.5 A (standard PoE); optional power adapter
• Sensors: built-in temperature, humidity and ambient light sensors (automatic brightness adjustment); proximity sensor for auto wake-up
• Installation: flush mount; dimensions 210.2 × 103.1 × 32.2 mm
• Operating temperature: –10 °C to +55 °C
• Certifications: CE
• Protocols: FTP, RTP, TCP, SIP

The sleek full-screen design with an ultra-narrow bezel and programmable mechanical buttons gives the device a modern look and provides quick access to the most frequently used system functions.
