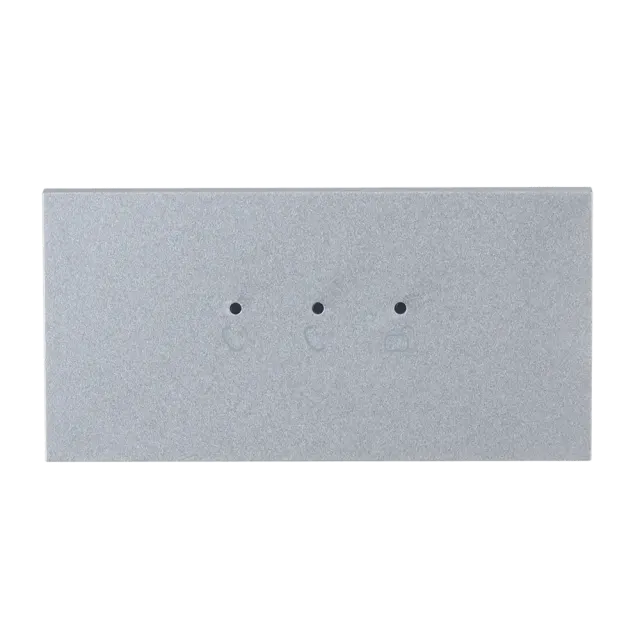

Dahua VTO4202F-ML – Status Indicator Module for Video Intercom, IP65, IK07
97774
Status indicator module for the VTO4202F-X modular video intercom series featuring 3 LED indicator lights, IP65/IK07 protection, and a silver aluminium alloy housing.
In stock
Sign in for B2B pricing
B2B partners can see their special prices and discounts after signing in.
Documents
Description
The Dahua VTO4202F-ML is a compact half-panel status indicator module designed for the VTO4202F-X modular video intercom system. It displays three LED status indicators (incoming call, outgoing call, unlock) and integrates seamlessly with other modules in the VTO4202F series. Power is supplied by other modules within the system, simplifying installation and cabling. A mounting box (VTM127 or VTM128) and an outer frame plate (VTM125 or VTM126) are required for installation.
Key features
- Indicator lights: 3 LEDs – incoming call, outgoing call, unlock
- Processor: Embedded MCU processor
- Power supply: 5 V DC (provided by other modules in the system)
- Power consumption: 1 W
- Dimensions: 100 mm × 49.9 mm × 28.5 mm (half panel)
- Colour: Silver
- Housing material: Aluminium alloy
- Ingress protection: IP65
- Vandal resistance: IK07
- Operating temperature: –20 °C to +60 °C
- Operating humidity: 10% to 90% RH
- Installation: Flush mount or surface mount
- Certifications: CE
- Compatible accessories: Mounting boxes VTM127 / VTM128; frame plates VTM125 / VTM126
The VTO4202F-ML is the ideal addition to Dahua VTO4202F-X modular video intercom systems in residential and commercial buildings where visual status feedback at the entrance is required.
