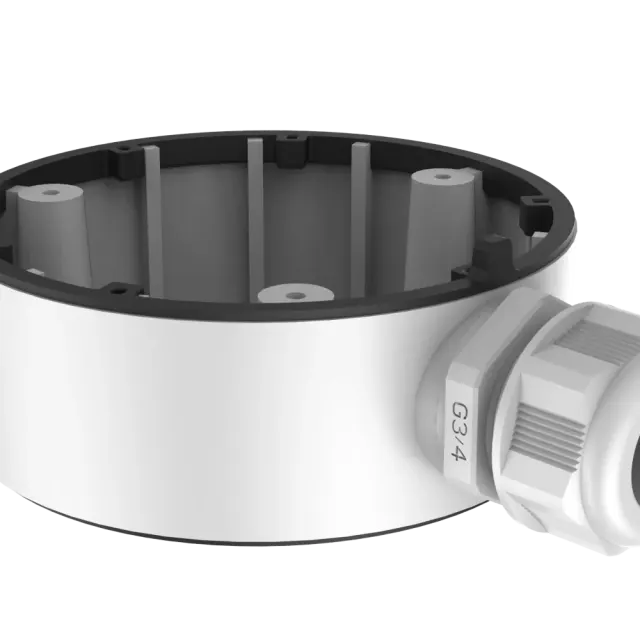

Hikvision DS-1280ZJ-TR13 – Junction Box for Turret Cameras, Aluminium Alloy, White

The Hikvision DS-1280ZJ-TR13 is a junction box designed for mounting compatible Hikvision turret and dome cameras on walls or ceilings. The housing is made from die-cast aluminium alloy, ensuring high mechanical strength and long service life. The box conceals power cables and connectors, providing a neat and professional installation finish in both indoor and outdoor environments.

Key features

• Type: Junction Box
• Material: Aluminium alloy – die-cast for high strength and reliability
• Colour: Hikvision White
• Dimensions: Φ 110 mm × 144.3 mm × 48 mm (Φ 4.33" × 5.68" × 1.89")
• Weight: Approx. 187 g
• Mounting: Wall or ceiling (screw fixing); mounting surface must support at least 3× the combined weight of camera and junction box
• Application: Indoor and outdoor use
• Weatherproofing: Waterproof rubber seal required for outdoor installation
• Cable management: Yes – with cable outlet(s)
• Package contents: Junction box, mounting plugs and screws, installation template

The DS-1280ZJ-TR13 is an ideal solution for professional B2B CCTV installations where tidy cable management and a robust mounting base are essential.
