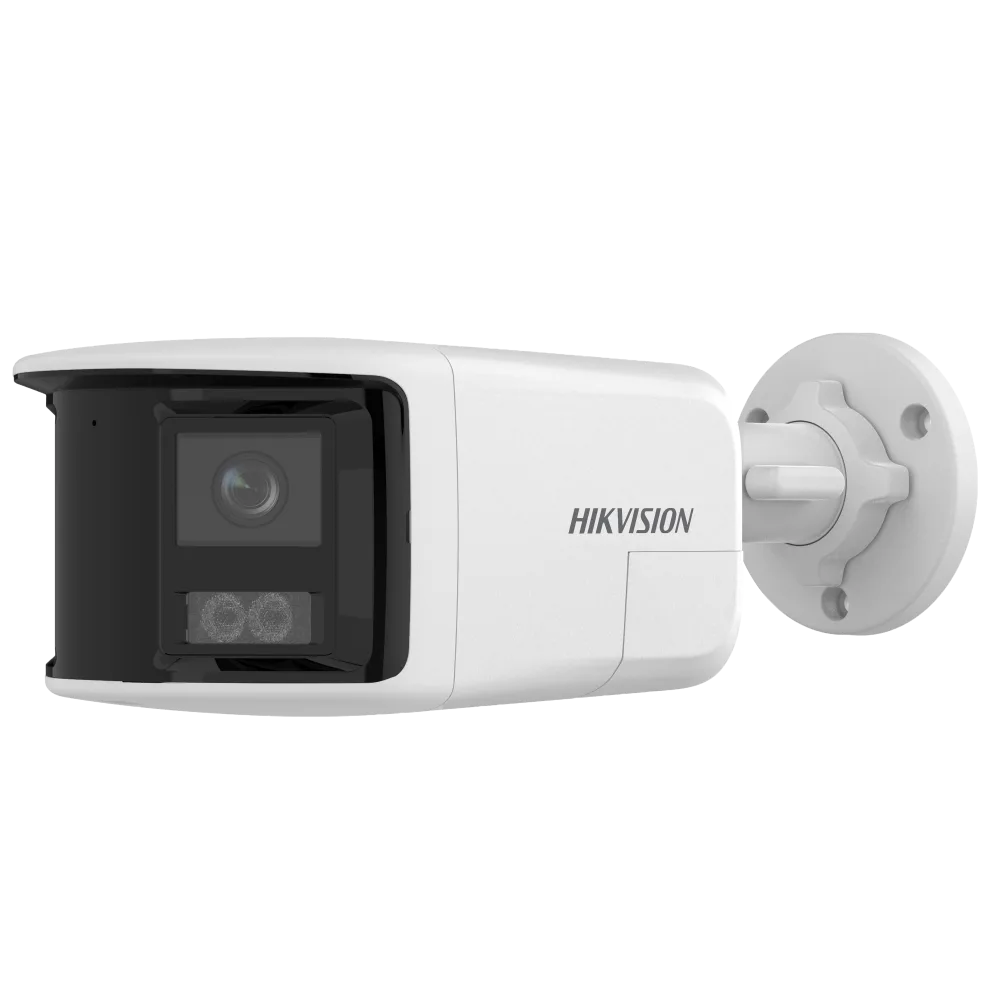

Hikvision DS-2CD1T63G2P-LIUF/SL 2.8mm – 6 MP Panoramic Bullet Camera 180°, Hybrid IR/White Light

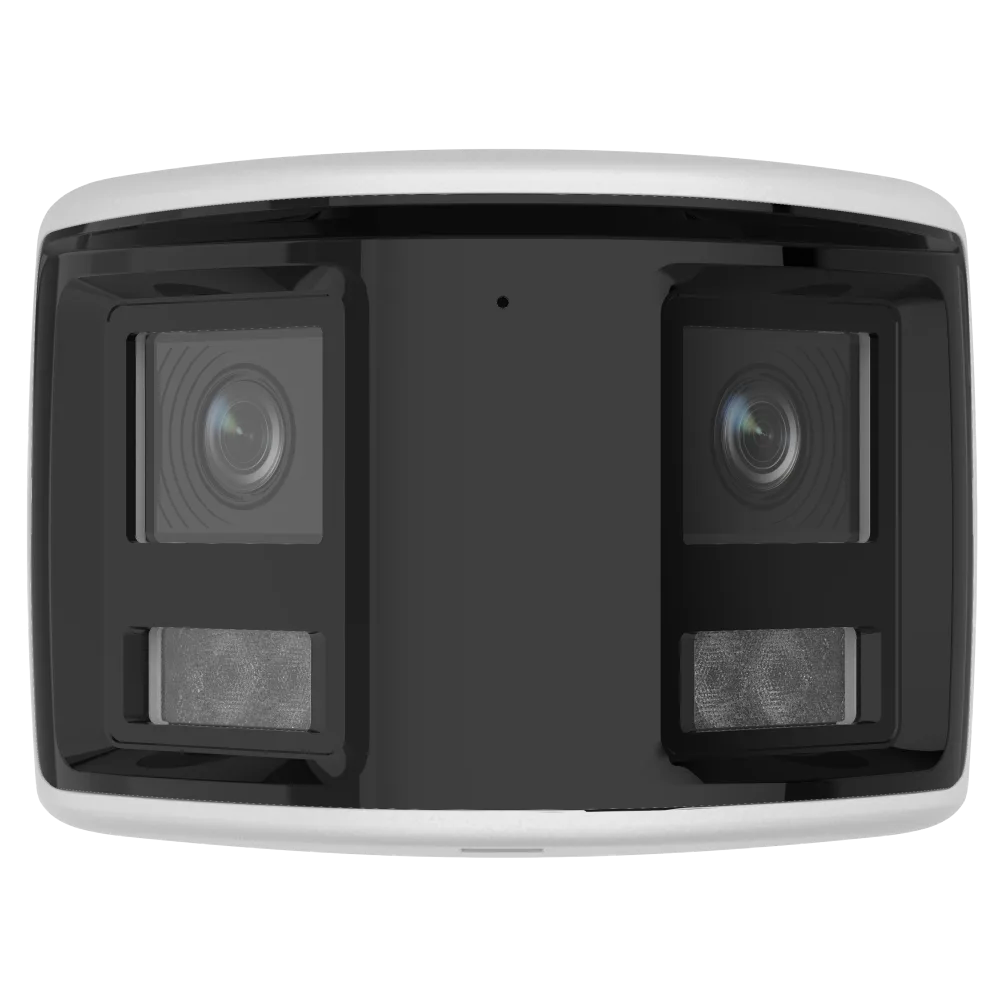

The Hikvision DS-2CD1T63G2P-LIUF/SL (2.8 mm) is a high-performance outdoor panoramic IP bullet camera from the Value Series, equipped with dual 1/2.5" Progressive Scan CMOS sensors delivering a combined 6 MP resolution (3632 × 1632) across a 180° horizontal field of view. Its Smart Hybrid Light technology (IR + white light, up to 30 m) combined with a built-in siren and strobe flash actively deters intruders. Ideal for monitoring entrances, car parks, and courtyards.

Key features

• Sensor: 2× 1/2.5" Progressive Scan CMOS
• Resolution: 6 MP – 3632 × 1632 px, up to 20 fps
• Lens: Fixed dual lens 2.8 mm, aperture F1.6, M12 mount
• Field of view: Horizontal 180°, vertical 77°
• DORI distances (2.8 mm): Detect 42 m, Observe 16 m, Recognize 8 m, Identify 4 m
• Min. illumination: 0.005 Lux @ F1.6 (colour), 0 Lux with IR
• Hybrid light: IR (850 nm) + white light, range up to 30 m, smart light control
• Active deterrence: Built-in siren and white strobe flash
• Video compression: H.265+ / H.265 / H.264+ / H.264
• WDR: 120 dB, 3D DNR
• Day/Night: True ICR Day/Night filter
• Audio: Two-way audio – built-in microphone and speaker
• Smart features: Motion Detection 2.0, Human and Vehicle Detection
• Local storage: microSD/microSDHC/microSDXC card slot, up to 512 GB
• Alarm I/O: 1× input, 1× output
• Protocols: ONVIF Profile S / G / T, Hik-Connect (mobile monitoring)
• Power: 12 V DC ± 25% (max. 10 W) or PoE IEEE 802.3af Class 3 (max. 11.5 W)
• Protection: IP67 (dust and water resistant)
• Operating temperature: −30 °C to +60 °C
• Dimensions: 103.6 mm × 76 mm × 234.5 mm

Compatible with Hikvision NVR systems and video management software (CMS). Suitable for surface mounting using the optional DS-1280ZJ-XS junction box.
