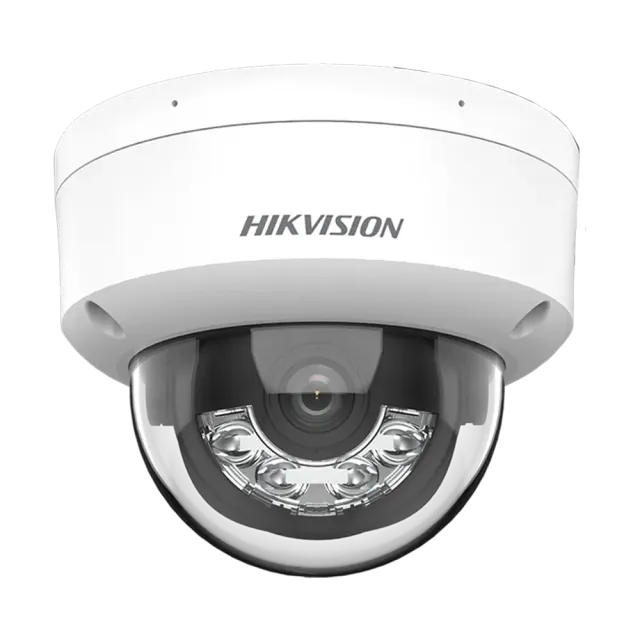

Hikvision DS-2CD2143G2-LIS2U 2.8mm – 4 MP IP Dome Camera with Hybrid Light and AcuSense

The Hikvision DS-2CD2143G2-LIS2U (2.8 mm) is a professional 4-megapixel Pro Series IP dome camera featuring smart hybrid lighting and AcuSense technology. The camera operates in three illumination modes – classic IR, white LED light, and smart mode, in which the camera automatically switches to full-colour white-light mode upon detecting a person or vehicle, then reverts to IR mode. Ideal for indoor and outdoor B2B installations in retail, warehouses, car parks, and commercial buildings.

Key features

• Image sensor: 1/3″ Progressive Scan CMOS
• Resolution: 4 MP (2688 × 1520)
• Lens: Fixed, 2.8 mm; horizontal FOV 104°, vertical FOV 57°, diagonal FOV 122°
• Minimum illumination: 0.005 Lux colour @ F1.6 (AGC on); 0 Lux with active IR/white light
• Hybrid illuminator: IR and white LED light, range up to 30 m
• AcuSense technology: Human and vehicle target classification (Motion Detection 2.0), line crossing, intrusion detection, false-alarm reduction
• Video compression: H.265+/H.265/H.264+/H.264 (main stream); H.265/H.264/MJPEG (sub-stream)
• Wide Dynamic Range (WDR): 120 dB
• Image enhancements: 3D-DNR, AGC, BLC, HLC
• Audio: Built-in dual microphone; audio input and output
• Alarm I/O: 1 alarm input / 1 alarm output
• Local storage: microSD/SDHC/SDXC card slot (up to 256 GB)
• Network interface: 1× RJ45 10/100 Mbit/s Ethernet
• Protocols: TCP/IP, HTTP, HTTPS, RTSP, ONVIF, DHCP, DNS, DDNS, NTP, 802.1X, QoS, IPv6 and others
• Power: 12 V DC ±25%, max. 6 W; PoE IEEE 802.3af, Class 3, max. 7.5 W
• Protection: IP67 (dust and water), IK10 (vandal-resistant)
• Angle adjustment: Pan 0°–355°, Tilt 0°–75°, Rotate 0°–355°
• Dimensions / weight: Ø 110.8 mm × 84.7 mm / approx. 530 g

Fully compatible with Hikvision NVR systems and the Hik-Connect platform, this camera delivers a reliable day-and-night video surveillance solution for sites with demanding security requirements.
