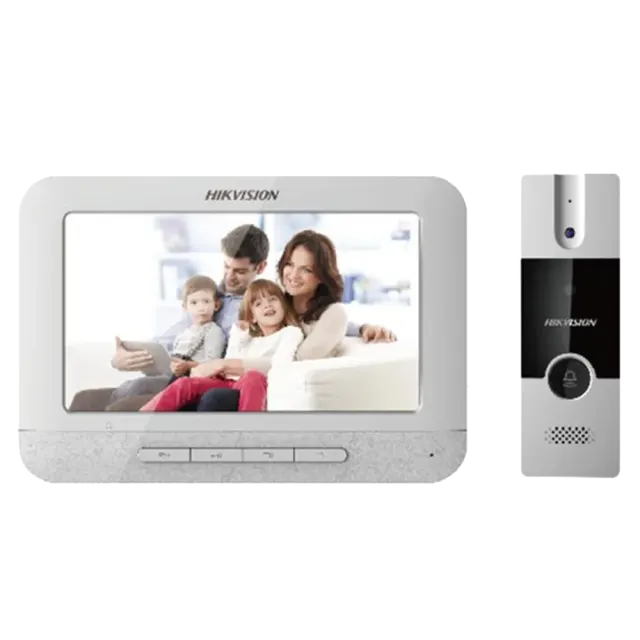

Hikvision DS-KIS202 – Video Door Phone Kit, 4-Wire Analog, 7" LCD, 720×576
70699
Analog video door phone kit DS-KIS202 for single-family homes: DS-KB2411-IM outdoor station with 1/4" CMOS camera and IR illumination, plus 7" colour TFT LCD indoor monitor DS-KH2220.
In stock
Sign in for B2B pricing
B2B partners can see their special prices and discounts after signing in.
Description
The Hikvision DS-KIS202 is a 4-wire analog video door phone kit designed for single-family homes and villas. The bundle includes the DS-KB2411-IM outdoor door station made of aluminium alloy and the DS-KH2220 7-inch colour indoor monitor – ready to operate after wiring, with no additional configuration required.
Key features
- Camera (door station): 1/4" CMOS sensor, resolution 720 × 576, 25 fps (PAL)
- Night vision: photosensitive IR supplement light, range up to 2 m
- Audio (door station): built-in omnidirectional microphone and loudspeaker with Noise Suppression and Echo Cancellation
- Indoor monitor: 7-inch colourful TFT LCD, display resolution 800 × 480
- Supported stations: up to 2 door stations and up to 3 indoor stations per system
- Unlock control: 1 relay output for electric strike control
- Interface: 4-wire analog interface (1-ch video input, 1-ch audio input/output, 1-ch power supply, 1-ch grounding)
- Door station material: aluminium alloy
- Working temperature (door station): −30 °C to +60 °C, humidity 10–90 %
- Power consumption (door station): max. 3 W
- Door station dimensions (L × W × H): 128 mm × 42 mm × 24.8 mm
- Compatibility: supports analog CCTV camera (CVBS) for extended monitoring; not compatible with Hikvision IP system
The compact and reliable DS-KIS202 kit offers plug-and-play installation and two-way audio-video communication with visitors – an ideal B2B solution for residential projects.
