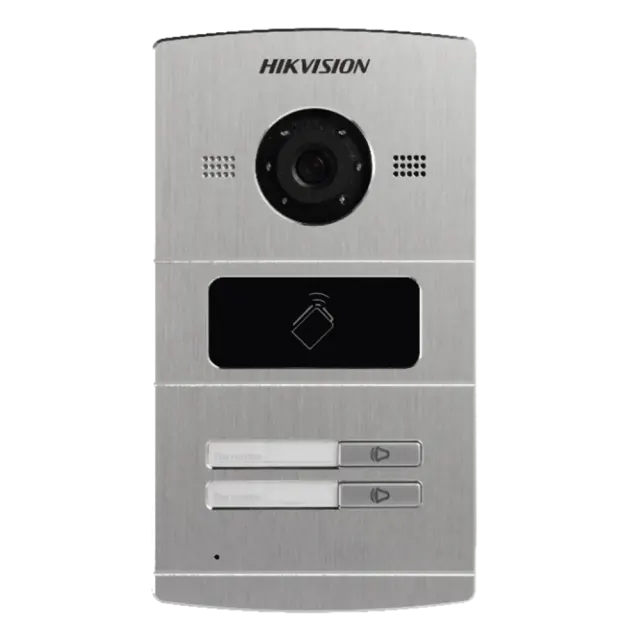

Hikvision DS-KV8202-IM – Outdoor Video Intercom Door Station, 1.3 MP, 2 Call Buttons, IP65

The Hikvision DS-KV8202-IM is a V-Series outdoor door station designed for 2-wire IP video intercom systems in villas and small multi-unit residential buildings. It delivers HD video surveillance via a 1.3 MP colour CMOS camera with a 120° wide-angle view and self-adaptive IR illumination for clear imaging even in complete darkness. Two independent call buttons allow separate calling of two apartments or units. The robust aluminium enclosure with IP65 protection ensures weather resistance, while the built-in IC card reader provides keyless access management.

Key features

• Camera: 1.3 MP colour CMOS, low-illumination sensor
• Video resolution: 1280 × 720 px at 25 fps, WDR, 120° angle of view
• Video codec: H.264
• Night vision: Self-adaptive IR light supplement
• Audio input: Built-in omnidirectional microphone with noise suppression and echo cancellation
• Audio output: Built-in loudspeaker
• Audio codec: G.711U, 64 Kbps
• Call buttons: 2 (for 2 independent residential units)
• Card reader: Built-in IC (Mifare) card reader – supports up to 256 cards
• Access control: Local card activation at door station, alarm inputs (door magnetic alarm, tamper alarm), relay output for electric strike control
• Network: 10/100 Mbps self-adaptive Ethernet (RJ-45); TCP/IP, RTSP protocols
• Power supply: 12 V DC or PoE (24 V DC via DS-KAD606 / DS-KAD612 switch)
• Integrations: iVMS-4200, Hik-Connect (Android/iOS), NVR (alarm notifications, recording and playback); RS-485
• Protection rating: IP65
• Mounting: Wall-mount; compatible with gang box 89 × 168 × 38 mm
• Operating system: Embedded Linux

The door station integrates seamlessly into the Hikvision IP video intercom ecosystem, enabling remote door unlocking, push notifications and call forwarding to a mobile phone via the Hik-Connect app.
