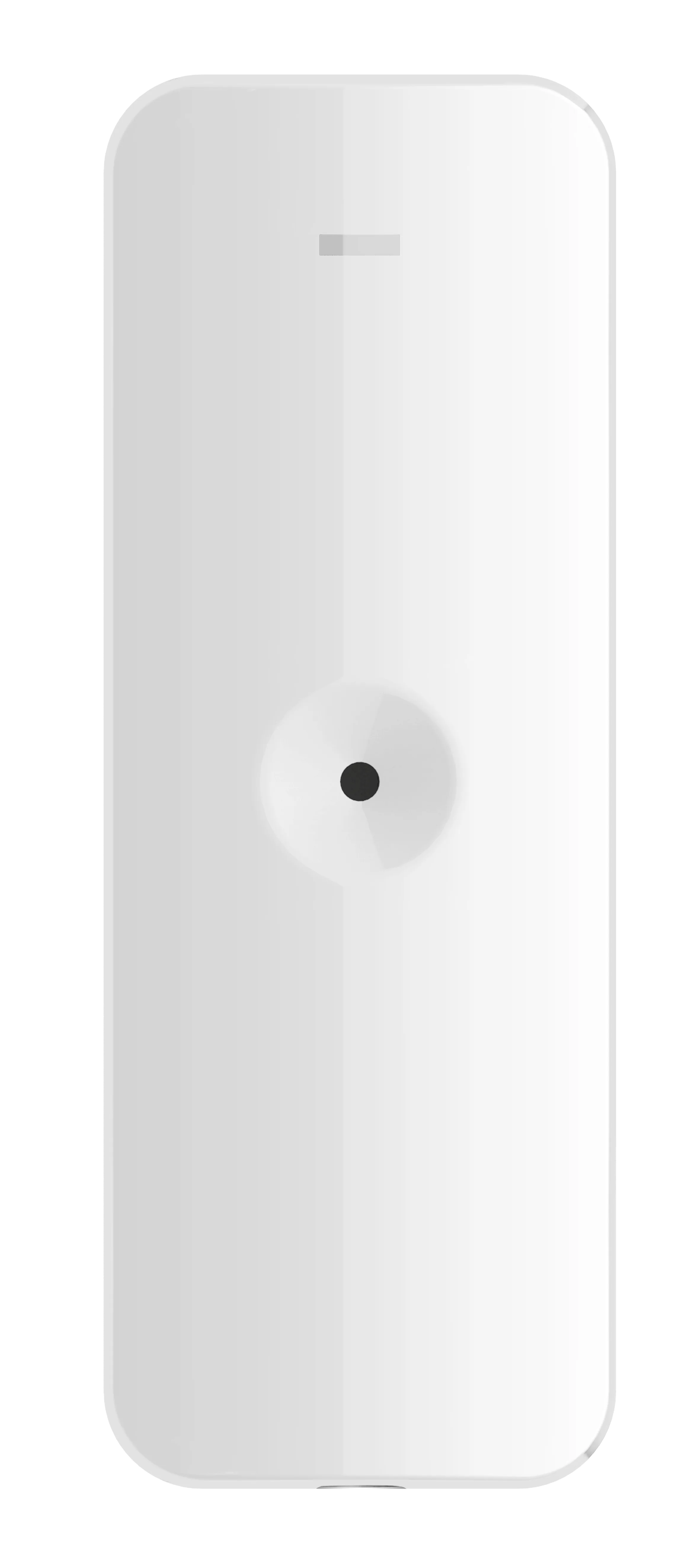

Hikvision DS-PDBG8-EG2-WE – Wireless Glass Break Detector, 8 m Range, 120° Angle, EN Grade 2

The Hikvision DS-PDBG8-EG2-WE is a wireless acoustic glass break detector from the AX PRO series. It features a high-quality omni-directional microphone sensor for reliable detection of glass impact and shattering sounds, and is fully configurable remotely via a mobile app. Designed for indoor wall or ceiling mounting, it complies with EN Grade 2.

Key features

• Detection method: Acoustic sensor (omni-directional electret microphone)
• Detection range: Up to 8 m
• Detection angle: 120°
• Adjustable sensitivity: 2 m / 4 m / 6 m / 8 m
• Supported glass types: Float, Plate, Tempered, Wired, Laminated Leaded, Double Glazing
• Glass thickness: 2.4 mm to 6.4 mm
• Glass size: 0.3 m × 0.3 m to 3 m × 3 m
• Wireless technology: Tri-X Wireless, two-way RF communication
• Transmission frequency: 868 MHz with frequency hopping (anti-jamming)
• Transmission security: AES-128 encryption
• Transmission range (free space): Up to 1.6 km
• Enrollment methods: Power up, Remote ID, QR Code
• Tamper protection: Front and rear
• LED indicator: Blue (alarm)
• Alarm input: Normally Closed / Normally Open / Impulse Count
• Digital signal processing: Supported
• Environment temperature indicator: Supported
• Signal strength indicator: Supported
• Power supply: Battery, typical voltage 3 V, battery life up to 5 years
• Dimensions (W × H × D): 38.8 mm × 107.0 mm × 24.5 mm
• Weight: 83 g
• Operating temperature: –10 °C to +55 °C
• Operating humidity: 10% to 90%
• Mounting: Wall or ceiling, indoor use only
• EN grade: EN Grade 2
• Compatibility: Hikvision AX PRO (96- and 64-zone wireless alarm systems)

The DS-PDBG8-EG2-WE is an ideal solution for protecting windows and glass surfaces in commercial and residential premises. Easy battery replacement with PCB protection and support for multiple enrollment methods ensure fast installation and long-term reliable operation.
