IPC-PDW31259-A180-E2-AS-PV-0280B

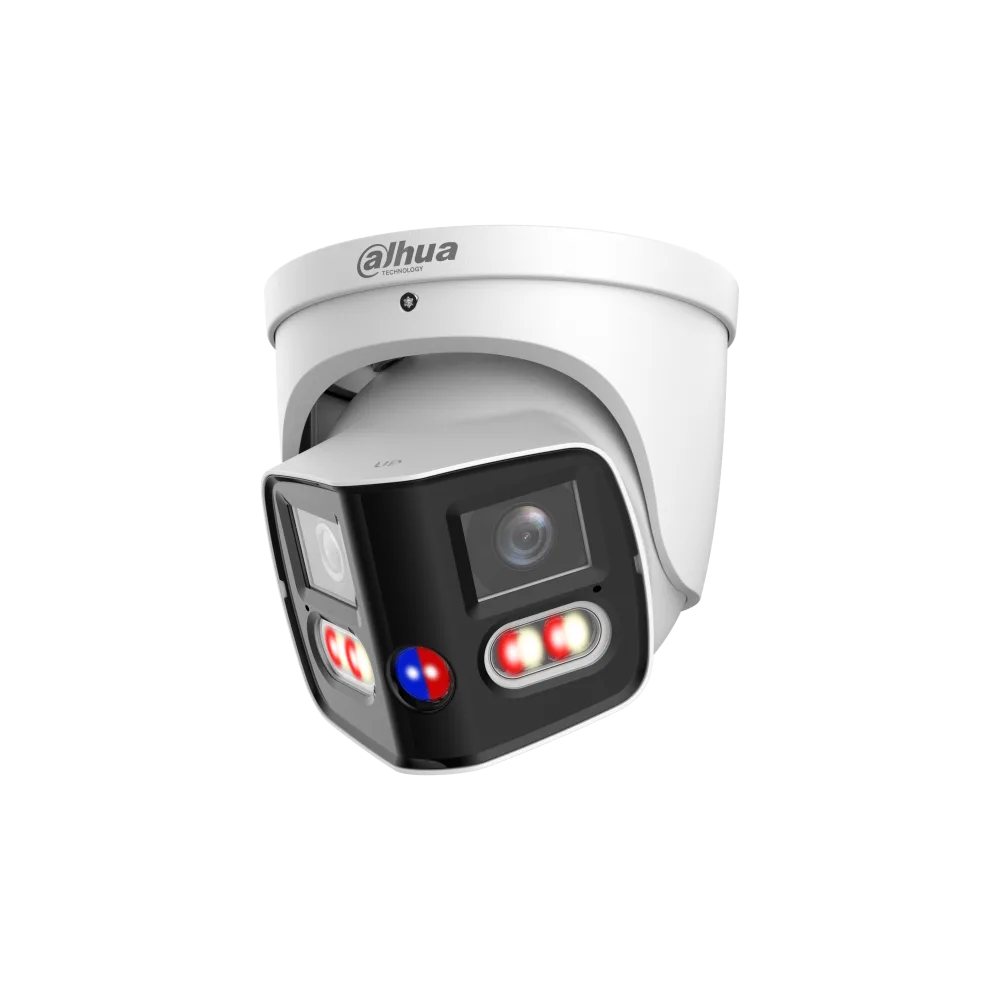

Dahua DH-IPC-PDW31259-A180-AS-PV 12MP TiOC Duo – Seamless 180° panorama with active deterrence and smart AI analytics

Looking for complete coverage of wide areas such as parking lots, courtyards or warehouses, without blind spots and without the need to install multiple cameras? The Dahua DH-IPC-PDW31259-A180-AS-PV combines the power of two 6 MP lenses into a single 180-degree panoramic image at a resolution of a full 12 MP (5000 × 2500).

Manufacturer / Model

Dahua DH-IPC-PDW31259-A180-AS-PV

Image sensor

2× 1/2.5" CMOS

Maximum resolution

12 Megapixels (5000 × 2500 @ 20 fps)

Field of view (FOV)

Horizontal: 180°; Vertical: 78°

Lens

Fixed 2.8 mm (F1.0 aperture)

Night vision / Illumination

Smart Dual Light (IR LED up to 30 m + warm white light up to 30 m)

Active deterrence

Red-blue flashing light + audible siren (11 tones/custom)

Video compression

AI H.265 / AI H.264 / Smart H.265+ / H.264

Dynamic range (WDR)

120 dB True WDR

Smart functions (IVS/AI)

Tripwire, Intrusion, Loitering, Stay Detection, Face Detection, SMD 4.0

Advanced AI search

AcuPick, Quick Pick, AI SSA (scene self-adaptation)

Audio

Built-in 2× microphones and speaker (up to 110 dB @ 10 cm); Two-way talk

Alarm and audio ports

1× Audio input / 1× Audio output (RCA); 1× Alarm input / 1× Alarm output

Memory / Local storage

Micro SD card slot up to 512 GB

Housing protection

IP67 (weather resistance); Metal housing

Power supply

12 VDC (±30%) or PoE+ (802.3at); Supports dual redundant power supply

Power consumption

Basic: 4.9 W (12 VDC) / 6.8 W (PoE); Max: 13.3 W (12 VDC) / 16.1 W (PoE)

Operating conditions

Temperature: –40 °C to +60 °C; Humidity: ≤95%

Dimensions and weight

135.2 mm × Φ122.0 mm; Net weight: 0.99 kg
