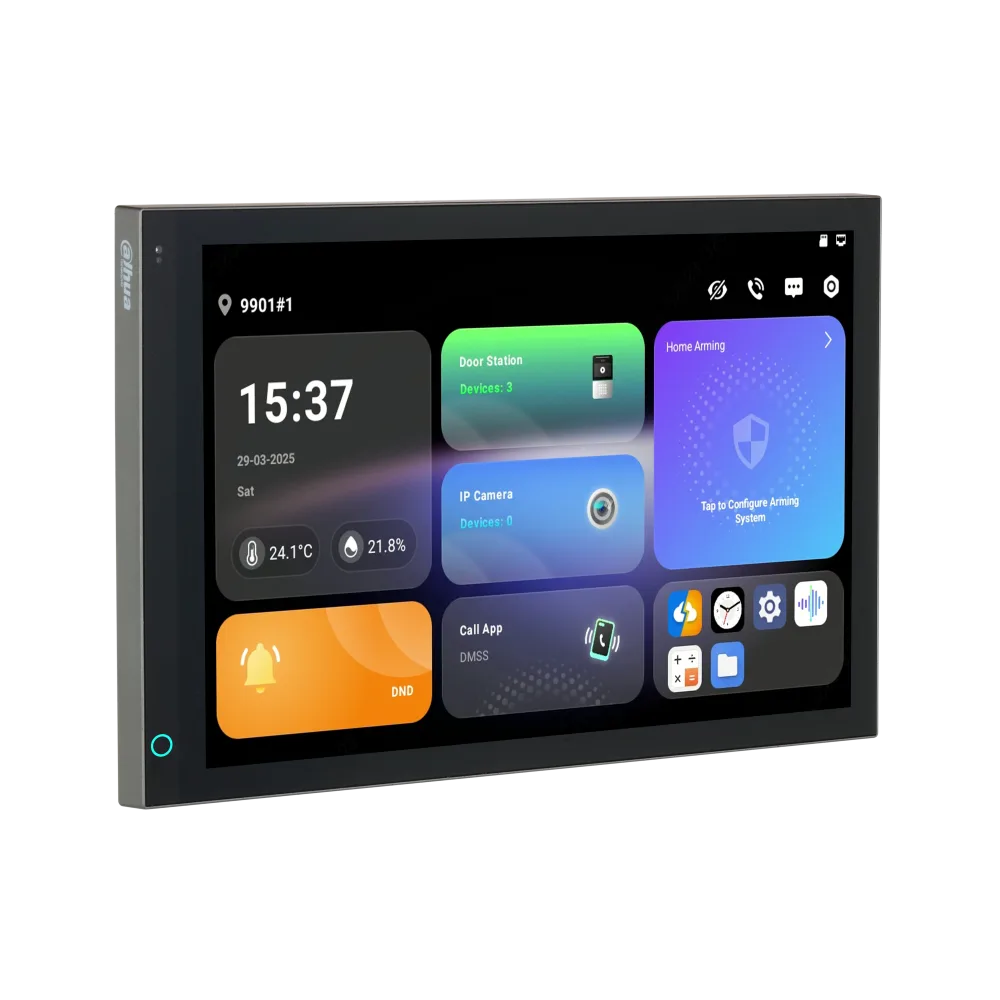

Dahua SCP3044A-BZ – Indoor Smart Control Panel, 10.1" IPS, Android 14, 4-Wire/Wi-Fi

The Dahua SCP3044A-BZ (DHI-SCP3044A-BZ) is a hybrid smart indoor panel for video intercom, monitoring and alarm systems. Running Android 14 on a 10.1-inch multi-touch IPS display, it combines visitor communication, alarm-zone management, information display and smart-building functions in a single flush-mounted wall device.

Key features

• Display: 10.1-inch IPS capacitive touchscreen, 1280 × 800 resolution, viewing angles up to 80° horizontally and vertically, full-screen design with ultra-narrow black border
• Operating system: Android 14 with APK installation support for third-party applications
• Connectivity: IP 4-wire, 10/100 Mbps Ethernet, dual-band Wi-Fi; protocols IPv4, RTSP, UDP, DNS, FTP, RTP, TCP, SIP
• Functions: video intercom, video monitoring, wireless alarm, information release
• Alarm interfaces: 8 alarm inputs, 1 alarm output, power output 12 V / 200 mA
• Wireless expansion: built-in Bluetooth, Zigbee and Sub-1G (868 MHz) modules for wireless sensors
• Auto wake-up: proximity sensor activates the screen when a person approaches
• Environmental sensors: built-in temperature and humidity sensors; ambient light sensor for automatic brightness adjustment
• Audio: two-way audio with integrated speaker and digital noise reduction

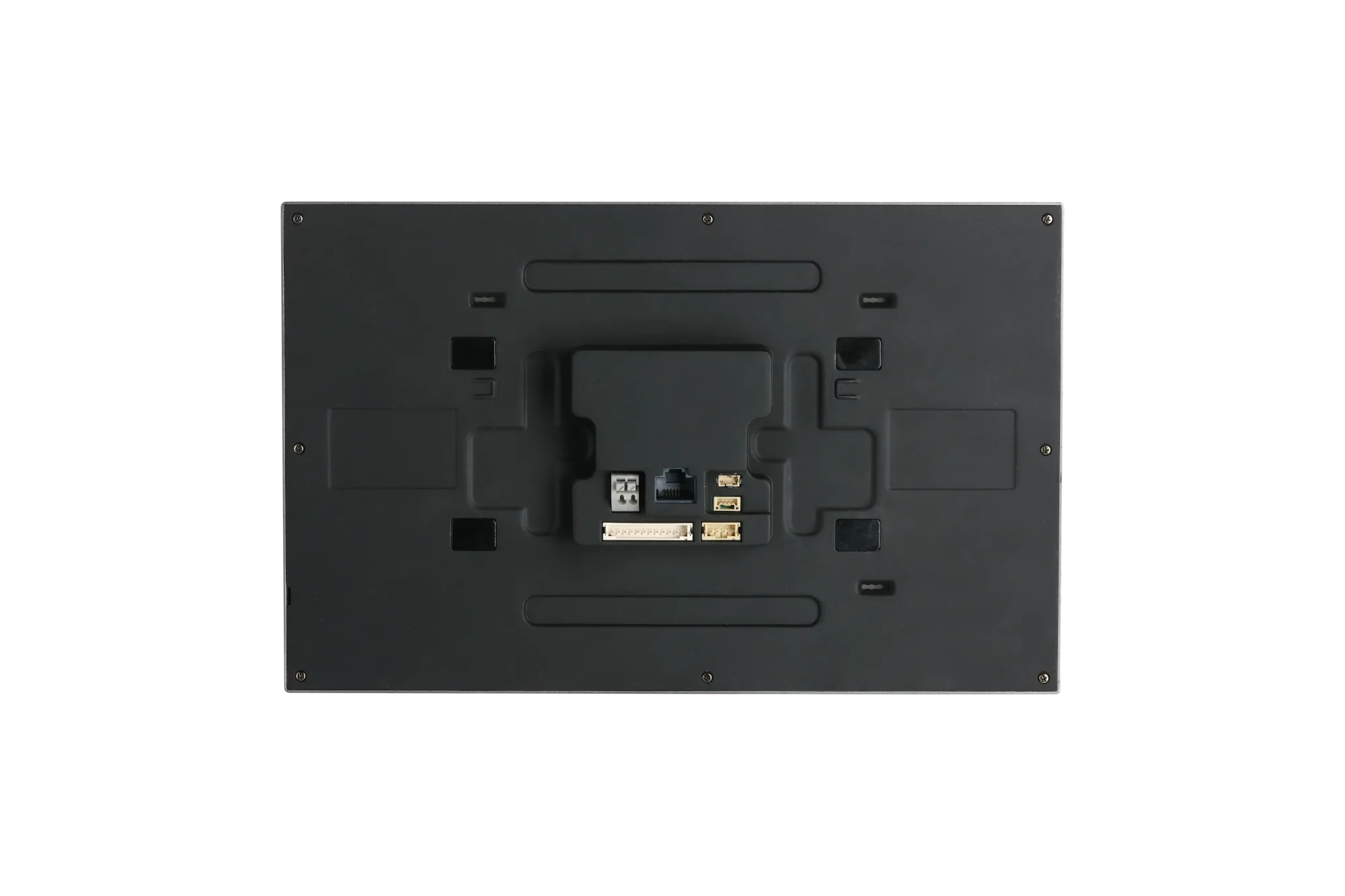

• Interfaces: RS-485, USB, 1 × 10/100 Mbps Ethernet, 1 × 4-wire port
• Storage: microSD card support up to 512 GB
• Power supply: 12 V DC / 2 A or standard PoE; optional power adapter
• Installation: flush mount
• Housing material: PC + ABS, grey
• Dimensions: 246.5 × 156.1 × 33.0 mm (W × H × D)
• Operating temperature: –10 °C to +55 °C
• Operating humidity: 10–95% RH, non-condensing
• Certifications: CE

Suitable for residential complexes, villas, offices and hotels where reliable visitor communication, alarm system integration and smart-building management from a single central interface are required.
