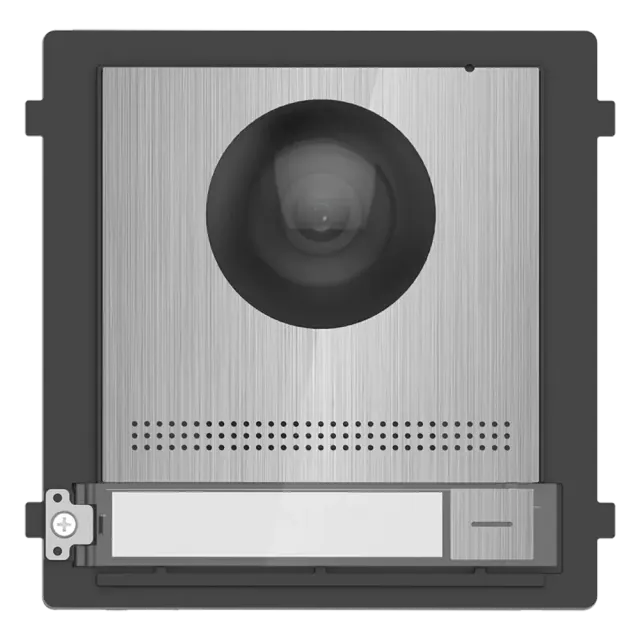

Hikvision DS-KD8003-IME1/S – Modular Video Intercom Door Station, 2MP Fisheye, IP65, PoE

The Hikvision DS-KD8003-IME1/S is the main unit of a modular IP video intercom system from the KD8 Pro series, designed for entry points of apartment buildings or commercial facilities. The fisheye lens camera delivers an exceptionally wide field of view at Full HD resolution, while IR illumination ensures clear imaging in low-light conditions. The unit serves as the core of the system and supports expansion with up to eight sub-modules (keypad, card reader, indicator module, etc.).

Key features

• Camera: 2 MP HD IR fisheye camera with low illumination
• Resolution: Main stream: 1920 × 1080; sub-stream: 720 × 480
• Field of View (FOV): Horizontal 180°, vertical 96°
• Night vision: IR supplement light for low-light operation
• WDR: Supported – ensures clear imaging against backlight
• Video compression: H.264 / TCP/IP, RTSP protocols
• Audio input: Built-in omnidirectional microphone
• Audio output: Built-in loudspeaker (more than 85 dB within 20 cm)
• Audio quality: Noise suppression and echo cancellation
• Call button: 1 physical call button
• Lock control: 2 relay outputs for electric locks
• Alarm inputs: 4-channel input (incl. tamper alarm)
• Network: 10/100 Mbps self-adaptive Ethernet
• System capacity: Up to 500 indoor stations; up to 16 sub door stations; up to 8 sub-modules
• Power supply: 12 V DC or standard PoE (IEEE 802.3af); power consumption 4 W
• Lock power output: Direct 12 V, 500 mA output for one electronic lock without additional power supply
• Protection rating: IP65
• Operating temperature: -40 °C to +55 °C
• Operating humidity: 10% to 95%
• Operating system: Embedded Linux
• Housing material: Stainless steel

The DS-KD8003-IME1/S is ideal for professional B2B installations requiring modular scalability, robust construction, and easy configuration via web interface. The Hikvision mobile app enables video calls and push notifications directly on a smartphone.
